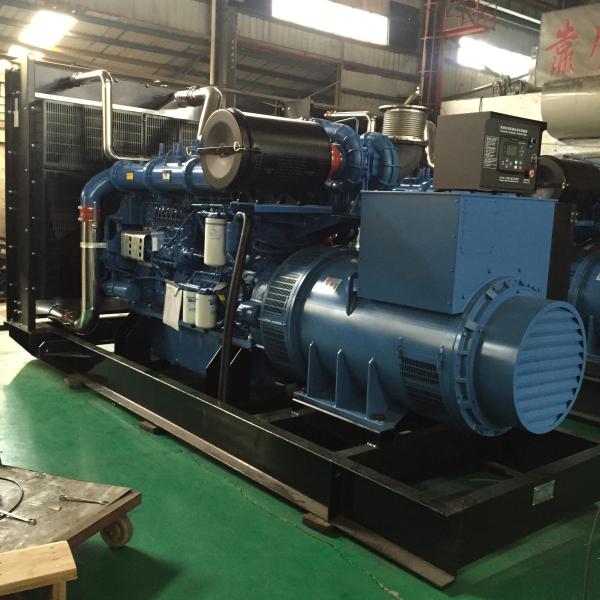

Yuchai Engine Powerd 640KW / 800KVA Diesel Generator Set
Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which
is based on the outstanding design in every aspect and strict QC
system.
2.Customer First:
We devote ourselves to develop products to meet customer’s
requirements. Our engineers develop and design new products for
customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48
hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and
under load, all products are 100% ex-factory pass rate.
5.Certification:
ISO9001:2015, TUV etc.
Genset Specifications:
| Genset model | SYF880-3 |
| Genset rated power | 640KW/800KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1152 Amp |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, radiator |
| Overall dimension (L×W×H) mm | 5100×1800×2500 |
| Weight (kg) | 6800 |
| Diesel Engine |
| Brand | YUCHAI |
| Model | YC6C1070-D31 |
| Engine type | 6 cylinders vertical in-line, 4 stroke |
| Aspiration | Turbocharged and intercooled |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Fuel system | Electronic fuel injection |
| Starting method | Electric |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 39.58 |
| Bore×Stroke(mm) | 200×210 |
| Compression ratio | 13.5:1 |
| Minimum fuel consumption (g/kw.h) | ≤195 |
| Lube oil capacity(L) | 180 |
| Alternator |
| Brand | FARADAY |
| Model | FD6A1-4 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
SCOPE OF SUPPLY
1. DIESEL ENGINE
1.1 Engine which includes wet type cylinder, direct injection
combustion chamber, exhaust turbocharger, water cooling, electronic
governor, etc.
1.2 Fuel system, which includes, fuel pump, strainers or filters,
etc.
1.3 Air intake and exhaust system, which includes air filter,
exhaust silencer, bellow, all intake and exhaust piping, cablings,
instruments, valves and settings, etc.
1.4 Cooling system, which includes radiator with water level alarm
and indicator, thermostatic switch, thermostatic heater, engine
shaft mounted fan, all interconnecting piping, cablings,
instruments, valves and settings, etc.
1.5 Lubricating system includes pumps, oil sumps, oil strainers and
filters, all interconnecting piping, instruments, valves and
settings, etc.
1.6 Starting system, which includes 2 sets of batteries, a set of
AC charger, and interconnecting piping, cablings, instrument,
valves and settings, etc.
2. AC SYNCHRONOUS GENERATOR
2.1 Generator, which includes exciter, rectifier, AVR, shaft
mounted fan if required.
2.2 All interconnecting piping, cablings, instruments, valves and
settings, etc.
3. COUPLINGS AND GUARD
3.1 Coupling
3.2 Coupling Guard
4. CONTROL PANEL
4.1 Local automatic control panel
5. BASEPLATE
5.1 Common base plate
6. DOCUMENTS
6.1 Generator Set Installation Manual
6.2 Generator Set Operation and Maintenance Manual
6.3 Generator Set Control Panel Manual
6.4 Engine Manual and Quality File
6.5 Alternator Manual and Quality File
6.6 Factory Acceptant Test Report
6.7 Relative Drawings and Diagrams
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM
Service for customers.
1. Unique design and manufacture of generator according to
customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be
design according to customer’s requirement.
4. Full warranty cover to support the customers.
