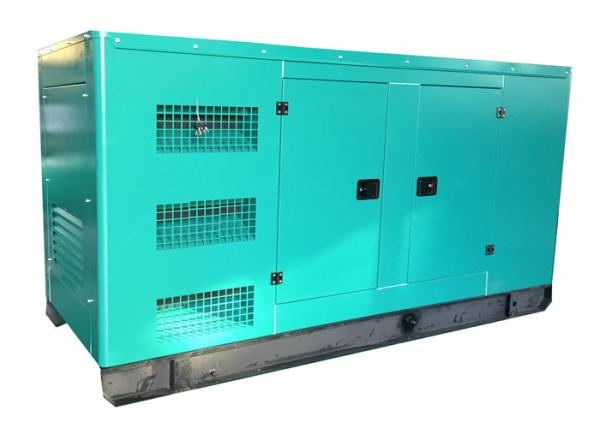

60Hz 220V Single Phase Generator 100KVA / 80KW Silent Diesel Generator

    Buy cheap 60Hz 220V Single Phase Generator 100KVA / 80KW Silent Diesel Generator from wholesalers

    Buy cheap 60Hz 220V Single Phase Generator 100KVA / 80KW Silent Diesel Generator from wholesalers
    • Buy cheap 60Hz 220V Single Phase Generator 100KVA / 80KW Silent Diesel Generator from wholesalers
    • Buy cheap 60Hz 220V Single Phase Generator 100KVA / 80KW Silent Diesel Generator from wholesalers

    60Hz 220V Single Phase Generator 100KVA / 80KW Silent Diesel Generator

    Ask Lasest Price
    Brand Name : SHX
    Model Number : SCF100
    Certification : ISO9001:2015, CE, TUV, BV
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 80 Sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    60Hz 220V Single Phase Generator 100KVA / 80KW Silent Diesel Generator


    80KW / 100KVA Cummins Engine With Faraday Alternator Silent Diesel Generator


    Genset Data: 220V, 60Hz, 1 Phase, 1800RPM.


    Genset Specifications:


    Genset modelSCF100
    Genset rated power80KW/100KVA
    Rated voltage220V
    Rated current455 Amp
    Frequency60 Hz
    Power factor0.8 Lagging
    Connecting type3 phase 4 wire
    Cooling systemClosed cycle water-cooled with fan, water tank
    Overall dimension (L×W×H) mm2950×1100×1520
    Gross weight (kg)1500

    Engine Specifications:


    Diesel Engine
    BrandDCEC CUMMINS
    Model6BT5.9-G2
    Engine structure6 cylinders vertical in line,4 stroke, turbocharged
    Rotating speed1800 RPM
    Engine cooling methodWater-cooled
    Speed governing systemElectronic speed governor
    Starting methodBy 24V batteries
    Engine filter systemDry type air filter ,fuel filter, oil filter, water filter
    Displacement(L)5.9
    Bore×Stroke(mm)102×120
    Compression ratio17.5: 1
    100% Load fuel consumption (litre/h)≤20.1
    Lube capacity(L)16.4

    Alternator Specifications:


    Alternator
    BrandFaraday
    ModelFD3DS
    Excite typeBrushless self-excited AVR regulation
    Connecting type3 phase 4 pole
    Steady frequency change0.50%
    No load voltage≥95%-105%
    Steady voltage≤±1%
    Insulation classClass H
    Protection gradeIP23

    Guarantee For SHX Series Generators:

    • Guarantee Period: One year or 1000hours whichever comes first.
    • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
    • Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
    • 24 hours service hotline is available for customers.

    Introduction of Sunkings Electric Co., Ltd


    Sunkings Electric Co., Ltd has more than a decades experience in manufacturing and maintenance of generator sets. We mainly manufacture Cummins, Deutz and Perkins powered gensets which are all made in China keeps the genset cost much lower than the US or EU or the Japan cost, since the design and all the materials are the same with original factories, the quality remains the almost the same as the original factories.


    Invitation to visit our factory

    1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
    2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou, and 35 minutes away from Canton fair.
    3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
    4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
