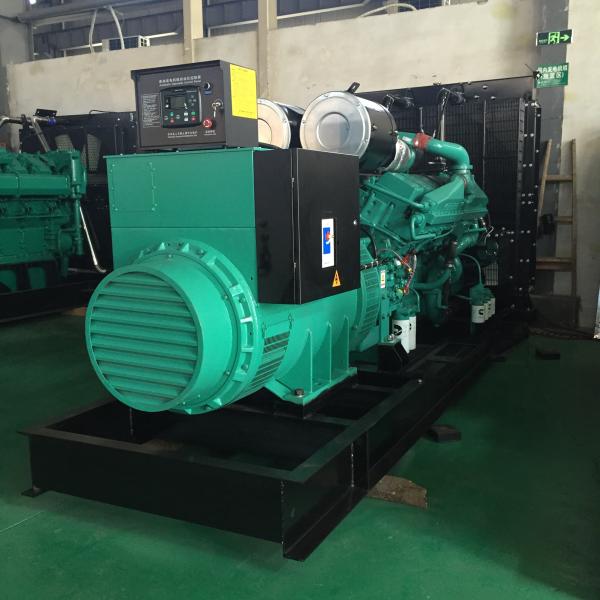

1000KVA Cummins KTA38-G5 Engine Powered Generator Set 3 Phase
Industrial Generator
Features
- Universal design and manufacture.
- Most widely used around the world.
- With most service terminals.
- Engineers are familiar with Cummins powered gensets.
- You could find spare-parts very easy.
Genset Specifications:
| Genset Model | SCF1000 |
| Prime Power | 800KW/1000KVA |
| Rated Voltage | 400/230V |
| Frequency | 50Hz |
| Power Factor | 0.8(lagging) |
| Dimension (L×W×H) (mm) | 4200×1800×2300 |
| Genset weight (kg) | 7900 |
Engine Specifications:
| Diesel Engine |
| Brand | CCEC Cummins |
| Model | KTA38-G5 |
| Number of Cylinders | 12 |
| Rotating Speed | 1500RPM |
| Cylinder Arrangement | 60º Vee form |
| Cycle | Four stroke |
| Aspiration | Turbocharged after water-cooled |
| Bore×Stroke(mm) | 159 x 159 |
| Displacement(L) | 37.8 |
| Compression Ratio | 15.5:1 |
| Speed Governor | EFC speed governor |
| Cooling System | Water-cooled |
| Speed Stability (%) | ≤5% |
| Total Lubrication System Capacity (L) | 129 |
| Fuel Consumption at 100% Load | 196g/kwh |
| Starting Method | DC 24V Electrical starting |
Alternator Specifications:
| Alternator |
| Brand | Faraday |
| Model | FD6C1-4 |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-excited, AVR automatic voltage regulation |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
Control System
Standard control panel is the basic configure for normally
operation and usage. The advantages of this panel are easy
operation, aomprehensive function and reliable protection and so
on. There are indicating gauges, lamps, transfer switches and
emergency stop button, etc. The control panel wil stop the whole
generator set and alarm as well when malfunction appears.
SCOPE OF SUPPLY
1. DIESEL ENGINE
1.1 Engine which includes wet type cylinder, direct injection
combustion chamber, exhaust turbocharger, water cooling, electronic
governor, etc.
1.2 Fuel system, which includes, fuel pump, strainers or filters,
etc.
1.3 Air intake and exhaust system, which includes air filter,
exhaust silencer, bellow, all intake and exhaust piping, cablings,
instruments, valves and settings, etc.
1.4 Cooling system, which includes radiator with water level alarm
and indicator, thermostatic switch, thermostatic heater, engine
shaft mounted fan, all interconnecting piping, cablings,
instruments, valves and settings, etc.
1.5 Lubricating system includes pumps, oil sumps, oil strainers and
filters, all interconnecting piping, instruments, valves and
settings, etc.
1.6 Starting system, which includes 2 sets of batteries, a set of
AC charger, and interconnecting piping, cablings, instrument,
valves and settings, etc.
2. AC SYNCHRONOUS GENERATOR
2.1 Generator, which includes exciter, rectifier, AVR, shaft
mounted fan if required.
2.2 All interconnecting piping, cablings, instruments, valves and
settings, etc.
3. COUPLINGS AND GUARD
3.1 Coupling
3.2 Coupling Guard
4. CONTROL PANEL
4.1 Local automatic control panel
5. BASEPLATE
5.1 Common base plate
6. DOCUMENTS
6.1 Generator Set Installation Manual
6.2 Generator Set Operation and Maintenance Manual
6.3 Generator Set Control Panel Manual
6.4 Engine Manual and Quality File
6.5 Alternator Manual and Quality File
6.6 Factory Acceptant Test Report
6.7 Relative Drawings and Diagrams
