150 Kva Perkins Diesel Generator Genset Commercial 400 Rated Voltage 50/60Hz

Ask Lasest Price
Brand Name :	SHX
Model Number :	SPF350
Certification :	ISO9001:2015, CE, TUV, BV
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	30 Sets per month
Delivery Time :	20 working days

Add to Cart

Product Details
Company Profile

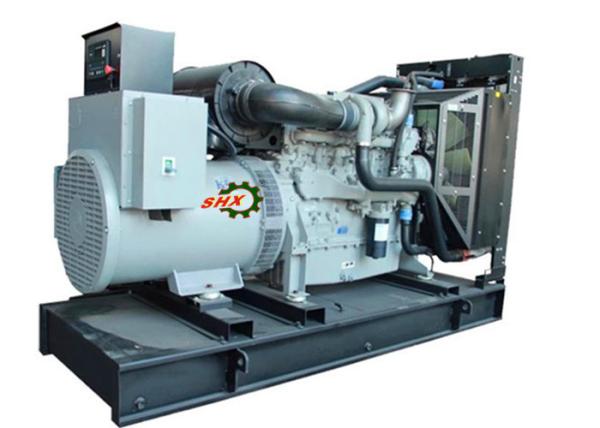

150 Kva Perkins Diesel Generator Genset Commercial 400 Rated Voltage 50/60Hz

150 Kva Perkins Diesel Genset 400 Rated Voltage 50/60Hz Commercial Generators

General Feature:

1. Prime power 120KW / 150KVA, standby power 132KW / 165KVA
2. Engine brand: Perkins
3. Alternator: Stamford
4. Water-cooled
5. Manual start / auto start
7. Soundproof canopy is optional
8. 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output

Genset Specifications:

Genset model	SPS165
Genset rated power	120KW / 150KVA
Rated voltage	400/230V (adjustable)
Rated current	216Amps
Frequency	50 Hz / 60 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	27508501150
Gross weight (kg)	1250

Engine Specifications:

Diesel Engine
Brand	PERKINS
Model	1106A-70TAG2
Engine type	6 cylinders in line, 4 stroke, direct injection
Aspiration	Turbocharged and intercooled
Rotating speed	1500 RPM
Engine cooling system	Water-cooled
Fuel injection system	Electronic
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	7
Bore×Stroke(mm)	105×135
Compression ratio	16:1
100% Load fuel consumption (l/h)	≤205
Lube capacity(L)	16.5

Alternator Specifications:

Alternator
Brand	STAMFORD
Model	UCI274F
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23

Operation Display:

Unit voltage, tri-phase load current and frequency display
Water temperature, oil pressure display
Fuel level, fuel temperature display
Audible and visual alarm lamps and buzzers
Starting system: DC alternator is used to start engine
Short circuit protection: MCCB air switch
Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 degree
Filter system: Oil, fuel and air filter
Accessories: Exhaust elbow, bellow, muffler

150 Kva Perkins Diesel Generator Genset Commercial 400 Rated Voltage 50/60Hz
