50Hz / 60Hz Water Cooled Perkins Diesel Generator 200 KVA With Power Capacity

Ask Lasest Price
Brand Name :	SHX
Model Number :	SPE200
Certification :	ISO9001:2015, CE, TUV, BV
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	30 Sets per month
Delivery Time :	20 working days

Add to Cart

Product Details
Company Profile

50Hz / 60Hz Water Cooled Perkins Diesel Generator 200 KVA With Power Capacity

50Hz / 60Hz Water Cooled Perkins Diesel Genset 200 KVA With Power Capacity

Product Advantages

1. Low exhaust gas (the electricity gushing out type engine reaches Europe Ⅲ standard.

2. Independent fuel direct gush-oil system.

3. Low fuel consumption.

4. Steady performance.

5. Good power-weight ratio.

6. Small, compact structure, beautiful appearance.

7. Easy to facilitate installation and maintenance.

Genset Specifications:

Genset model	SPE200
Genset rated power	160KW/200KVA
Rated voltage	400/230V (adjustable)
Rated current	288 Amps
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	2850 × 900 × 1250
Gross weight (kg)	1450

Engine Specifications:

Diesel Engine
Brand	PERKINS
Model	1106A-70TAG4
Engine type	6 cylinders in line, 4 stroke, direct injection
Aspiration	Turbocharged and intercooled
Rotating speed	1500 RPM
Engine cooling system	Water-cooled
Speed governing system	Electronic
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	7.01
Bore×Stroke(mm)	105×135
Compression ratio	16:1
100% Load fuel consumption (l/h)	≤38.9
Lube capacity(L)	16.5

Alternator Specifications:

Alternator
Brand	ENGGA
Model	EG280-160N
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP21

Introduction of Diesel Generator:

A Diesel Generator (DG) is a combination of diesel engine with electrical generator (often called an alternator) to generate electricity. DG sets are used in places that have no connection to power grid, and as emergency power-supply if the grid fails. In other words, DG sets remain the number one choice for standby and emergency power systems. DG sets are selected based on the electrical load they are intended to supply.

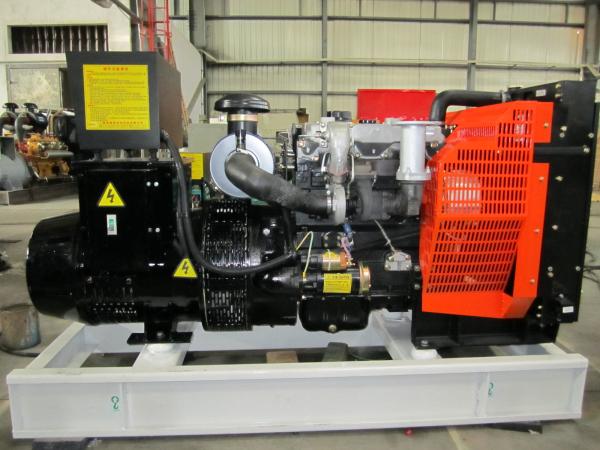

Picture Show:
