Detailed Product Description:
Water Cooled 50 KW Diesel Generator Set With Perkins Engine 3 Phase
4 Pole 50Hz
Product Advantages
1. Low exhaust gas (the electricity gushing out type engine reaches
Europe Ⅲ standard.
2. Independent fuel direct gush-oil system.
3. Low fuel consumption.
4. Steady performance.
5. Good power-weight ratio.
6. Small, compact structure, beautiful appearance.
7. Easy to facilitate installation and maintenance.
Specification of generator set
Prime power: 63KVA / 50KW
Rated voltage: 400V / 230V
Rated frequency: 50Hz
Rated speed: 1500RPM
Engine
Brand: Perkins
Model: 1104A-44TG1
Speed governor mechanic
Cooling system forced water cooling cycle
Alternator Feature
Alternator brand: Engga
Model: EG225-50N
Number of phase: 3P
Number of bearing: 1
Protection grade: IP21
Exciter type brushless, self exciter, AVR automatic voltage
regulation, 100% copper winding wire
Instruction: class H
Brushless self excited, single bearing, 4 poles
Self-exciting and self-regulating
Control System
Standard control panel is the basic configure for normally
operation and usage. The advantages of this panel are easy
operation, aomprehensive function and reliable protection and so
on. There are indicating gauges, lamps, transfer switches and
emergency stop button, etc. The control panel wil stop the whole
generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller
with LED displaying the operating mode of the controller and the
running state of the generator sets. It can configure the control
procedure and protection parameter of the generator set, and
completely satisfied the automatic controlling requirement of the
generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty
controlling generator sets. This kind of panel adopts module
control system, with large LCD screen to show the menu. The module
can receive output signal from ATS and realize automatic start and
stop the generator sets.

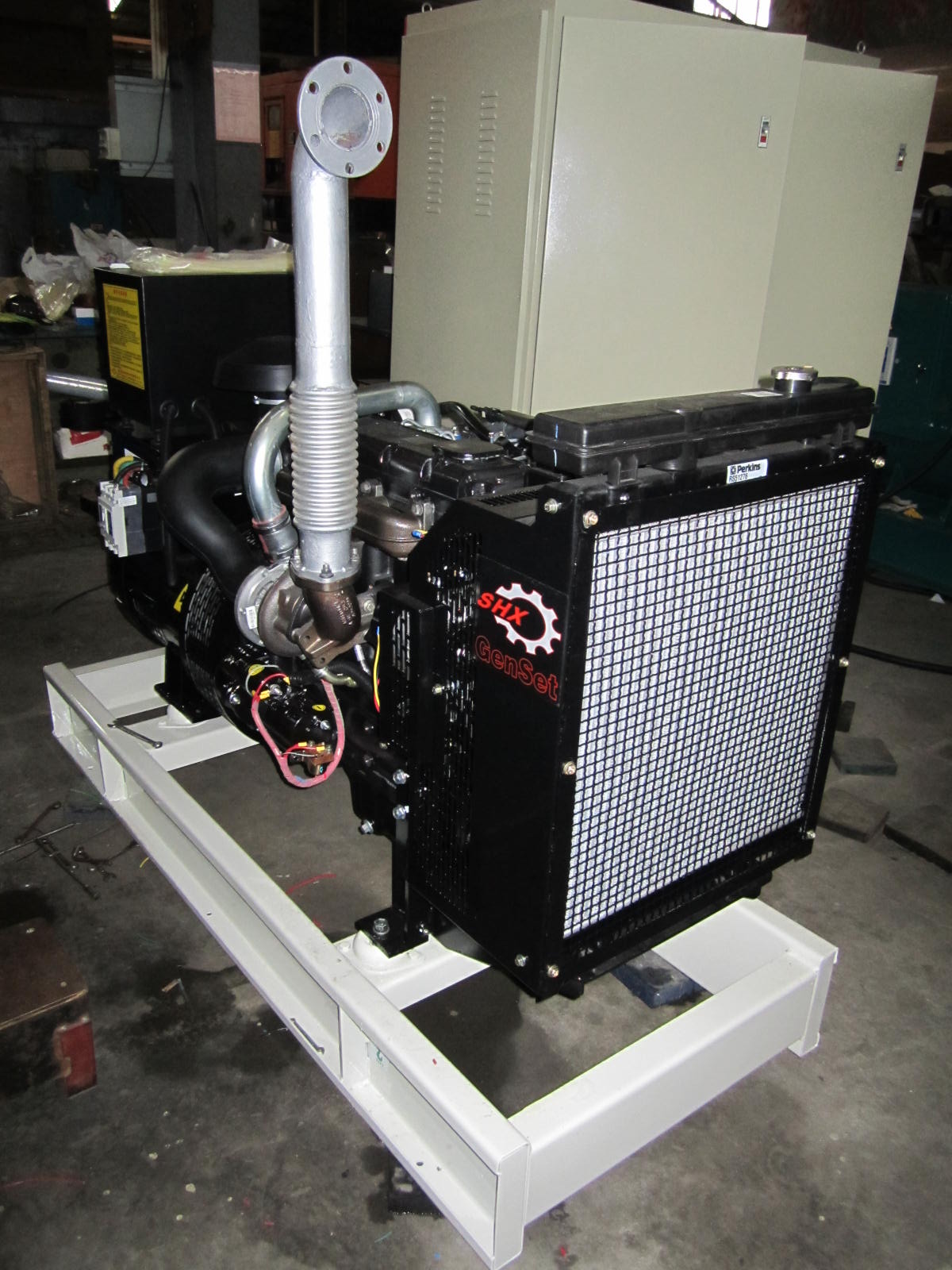

Picture show:
