800KW / 1000KVA 3 Phase Cummins Diesel Generator 50Hz 400/230V

Cummins Diesel Generator 800KW / 1000KVA 50Hz 400/230V 3 Phase Generator

Genset Specifications:

Genset Model	SCF1000
Prime Power	800KW/1000KVA
Rated Voltage	400/230V
Frequency	50Hz
Power Factor	0.8(lagging)
Dimension (L×W×H) (mm)	4200×1800×2300
Genset weight (kg)	7900

Engine Specifications:

Diesel Engine
Brand	CCEC Cummins
Model	KTA38-G5
Number of Cylinders	12
Rotating Speed	1500RPM
Cylinder Arrangement	60º Vee form
Cycle	Four stroke
Aspiration	Turbocharged after water-cooled
Bore×Stroke(mm)	159 x 159
Displacement(L)	37.8
Compression Ratio	15.5:1
Speed Governor	EFC speed governor
Cooling System	Water-cooled
Speed Stability (%)	≤5%
Total Lubrication System Capacity (L)	129
Fuel Consumption at 100% Load	196g/kwh
Starting Method	DC 24V Electrical starting

Alternator Specifications:

Alternator
Brand	Faraday
Model	FD6C1-4
Number of Phase	3
Connecting Type	3 Phase and 4 Wires
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless ,Self-excited, AVR automatic voltage regulation
Insulation Class	H
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Power Specifications

1500RPM at 50Hz/1800RPM at 60Hz
Water Cooled
Turbocharged

Electrical Specifications

Power Factor: 0.8 Lagging
3 Phase 4 Pole
Insulation: Class H
Brushless
Self-Excited
IP22 Protection
AVR regulation
Starting by Battery

Special Specifications

Frequency: 50/60Hz
3 Phase 4 Wire or 1 Phase 2 Wire
Speed: 1500/1800rpm
Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V
Single Phase Voltage Available: 100-250V

Control Panel:

The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset has low oil pressure, high temperature, over speed, fail to start, charge fail, emergency stop, and over load protection function.

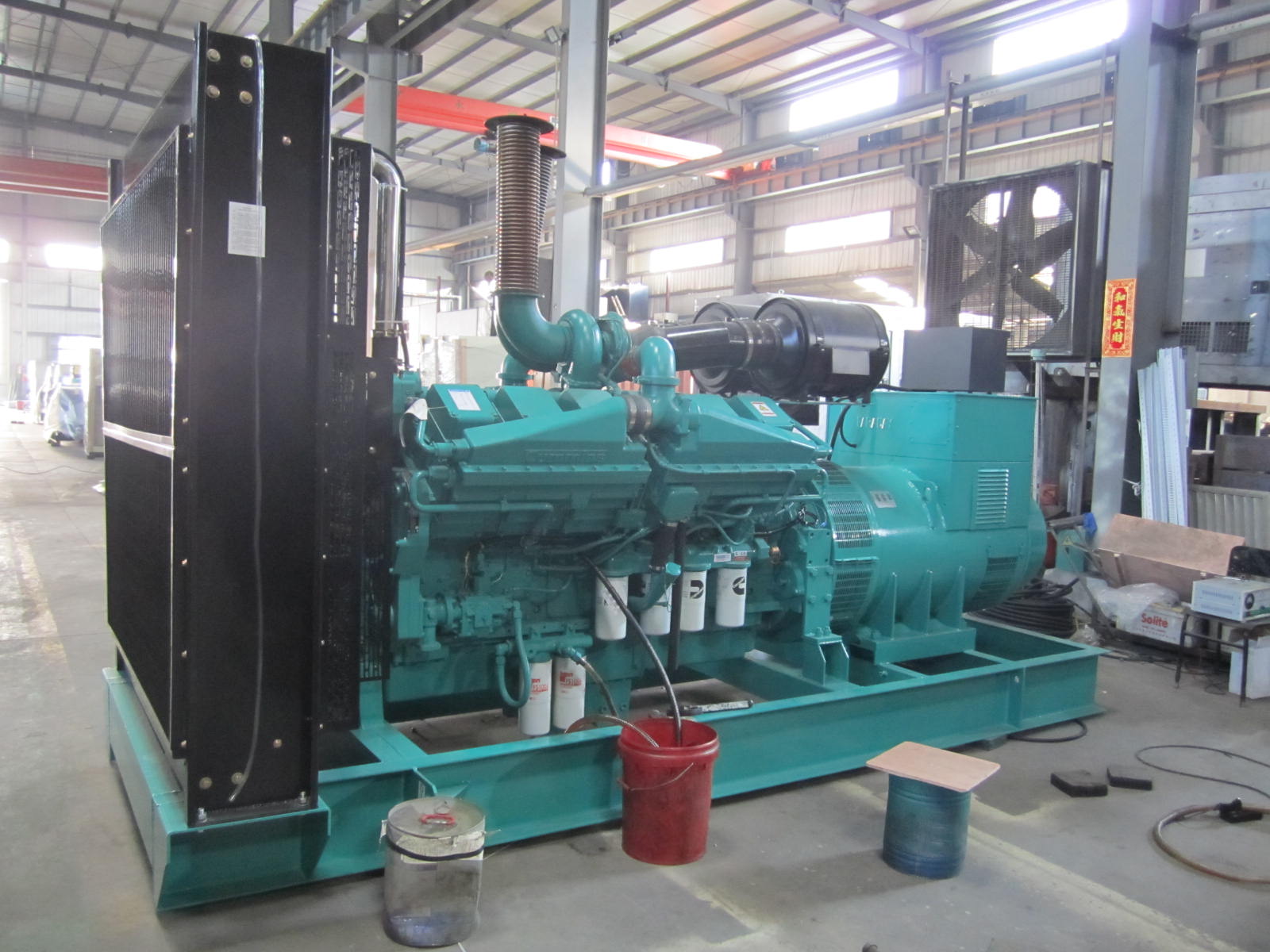

Picture show:
