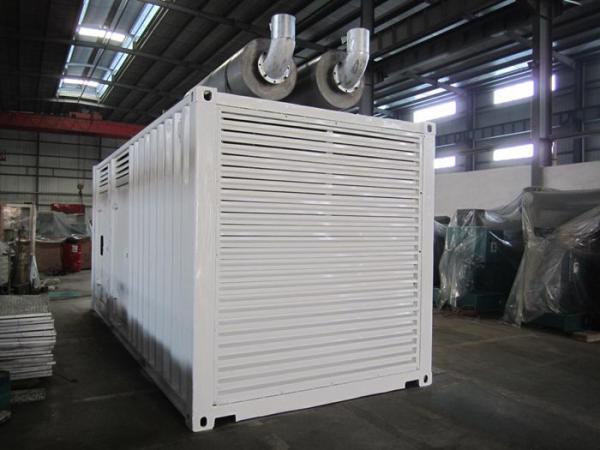

900KVA Containerized Water Cooled Generator KTA38-G2A , Standby Diesel Generator

Ask Lasest Price
Brand Name :	SHX
Model Number :	SCS900
Certification :	ISO9001:2015, CE, TUV, BV
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	5 Sets per month
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

900KVA Containerized Water Cooled Generator KTA38-G2A , Standby Diesel Generator

900KVA Containerized Diesel Generators KTA38-G2A , Standby Diesel Generator

General Information:

Prime power: 900KVA / 720KW, standby power 990KVA / 792KW.
Rated voltage: 400V / 230V.
Rated frequency: 50Hz.
Rated speed: 1500RPM.
3 Phase 4 Pole.

The power output of Cummins Generator Sets

In front of the shock absorber can be installed double groove power output belt pulley of the crankshaft, Cummins Generator set front end is equipped with multi slot attachment drive pulley, both with a variety of front power output device.

Genset Specifications:

Genset model	SCS900
Genset rated power	900KVA / 720KW
Rated voltage	400/230V (adjustable)
Rated current	1296 Amps
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	6058×2438×2591
Gross weight (kg)	9800

Engine Specifications:

Diesel Engine
Brand	CCEC CUMMINS
Model	KTA38-G2A
Engine type	12 cylinders in Vee form,4 stroke, direct injection
Aspiration	Turbocharged and water-to-air aftercooled
Rotating speed	1500 RPM
Engine cooling system	Water-cooled
Speed governing system	Electronic speed governor
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	38
Bore×Stroke(mm)	159×159
Compression ratio	14.5: 1
100% Load fuel consumption (g/kw.h)	≤202
Lube capacity(L)	114

Alternator Specifications:

Alternator
Brand	STAMFORD
Model	LVI634D
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23

Control System

Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
