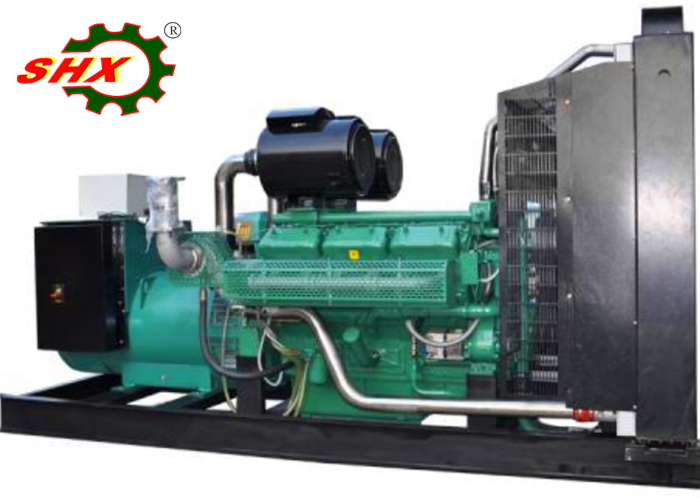

1000Kva 50Hz 400V Output Voltage China Diesel Generator for
Industry Backup Power
Data of generator set
Prime power: 1000KVA / 800KW
Rated voltage: 400V / 230V
Rated frequency: 50Hz
Rated speed: 1500RPM
Generaor Set Specifications:
| Genset Model | SWE1000 |
| Prime Power | 800KW/1000KVA |
| Rated Voltage | 400/230V |
| Frequency | 50Hz |
| Power Factor | 0.8(lagging) |
| Dimension (L×W×H) (mm) | 4200×1800×2200 |
| Genset weight (kg) | 7200 |
Engine Specifications:
| Diesel Engine |
| Brand | Wuxi Power |
| Model | WD327TAD92 |
| Number of Cylinders | 12 |
| Rotating Speed | 1500RPM |
| Cylinder Arrangement | 60º Vee form |
| Cycle | Four stroke |
| Aspiration | Turbocharged after water-cooled |
| Bore×Stroke(mm) | 145 x 165 |
| Displacement(L) | 32.7 |
| Compression Ratio | 16:1 |
| Speed Governor | Electronic |
| Cooling System | Water-cooled |
| Speed Stability (%) | ≤5% |
| Noise Level (DB) | ≤117 |
| Fuel Consumption at 100% Load (g/kw.h) | 196 |
| Starting Method | DC 24V Electrical starting |
Alternator Specifications:
| Alternator |
| Brand | Engga |
| Model | EG400-800N |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP21 |
Product Advantages
1. Low exhaust gas (the electricity gushing out type engine reaches
Europe Ⅲ standard.
2. Independent fuel direct gush-oil system.
3. Low fuel consumption.
4. Steady performance.
5. Good power-weight ratio.
6. Small, compact structure, beautiful appearance.
7. Easy to facilitate installation and maintenance.
Standard configuration of gensets:
1. Engine: Shangchai diesel engine (Adjuestable)
2. Engine Feature: Water-cooled, in line four-stoke, Humit cylinder
liner, direct injection
3. Alternator: Faraday brushless alternator (Adjuestable)
4. Smartgen genset controller
5. Soundproof canopy with 8 hours base fuel tank
6. Trailer with 4 wheels
