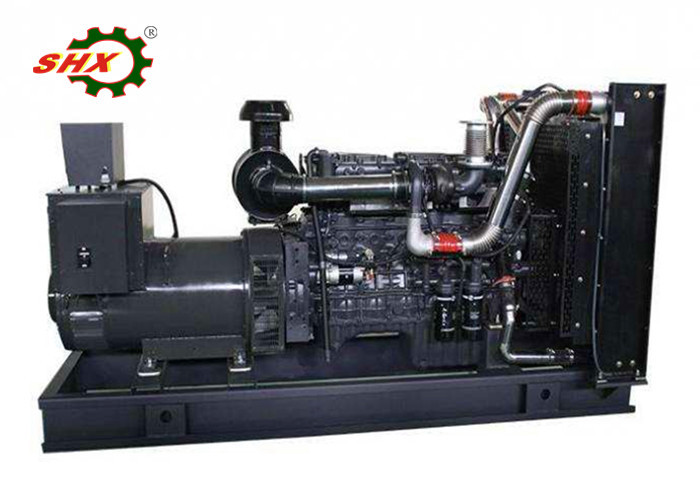

Power Industrial Diesel Generator Set 300KW / 375KVA 1500RPM Diesel
Genset
Genset Data: 400/230V, 50Hz, 3 Phase 4 Pole, 1500RPM, Power Factor 0.8.
Product Description:
1. Prime power 375KVA, standby power 413KVA.
2. Powered by Wuxi Power engine.
3. Original Engga alternator.
4. Delixi air breaker.
5. Electric start with batteries.
6. Smartgen controller.
7. ATS is for option.
Generaor Set Specifications:
| Genset Model | SWE375 |
| Prime Power | 300KW/375KVA |
| Rated Voltage | 400/230V |
| Frequency | 50Hz |
| Power Factor | 0.8(lagging) |
| Dimension (L×W×H) (mm) | 3400×1250×1750 |
| Genset weight (kg) | 3400 |
Engine Specifications:
| Diesel Engine |
| Brand | Wuxi Power |
| Model | WD145TAD30 |
| Number of Cylinders | 6L |
| Rotating Speed | 1500RPM |
| Cylinder Arrangement | In line |
| Cycle | Four stroke |
| Aspiration | Turbocharged |
| Bore×Stroke(mm) | 138 x 160 |
| Displacement(L) | 14.5 |
| Compression Ratio | 15.5:1 |
| Speed Governor | Electronic |
| Cooling System | Water-cooled |
| Speed Stability (%) | ≤5% |
| Noise Level (DB) | ≤117 |
| Fuel Consumption at 100% Load (g/kw.h) | 198 |
| Starting Method | DC 24V Electrical starting |
Alternator Specifications:
| Alternator |
| Brand | Engga |
| Model | EG315-300N |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP21 |
OEM SERVICE
- Unique design and manufacture of generator according to customers
requirement.
- Customer logo printing or painting on the genset.
- Installation and Operation manual neutral or headings can be design
according to customer requirement.
- Full warranty cover to support the customers.
QUALITY CONTROL & WARRANTY
All generator sets should go through the rigorous testing before
being released to the market place, including 50% load, 75% load,
100% load , 110% load and all protection functions (overspeed stop,
high water temperature, low oil pressure and battery charging fail)
Our factory warrants that the gensets will be free from defects in
materials and workmanship for a period of one year from the date of
shipment or 1200 hours, whichever comes first. If the product
proves defective during the warranty period,our factory, at its
option, will:
(1) repair the product by means of telephone support or depot
service at no charge for parts or labor,
(2) provide the new spare parts to replace the broken one for
maintenance.
PACKAGING & SHIPMENT
1.LCL shippment: we apply plywood case packing which is durable for
ocean transport.
2.FCL shippment: we use PE film which is lighter and cost-saving
for packing inside the container, and use steel wires to fix the
generators in the container.
