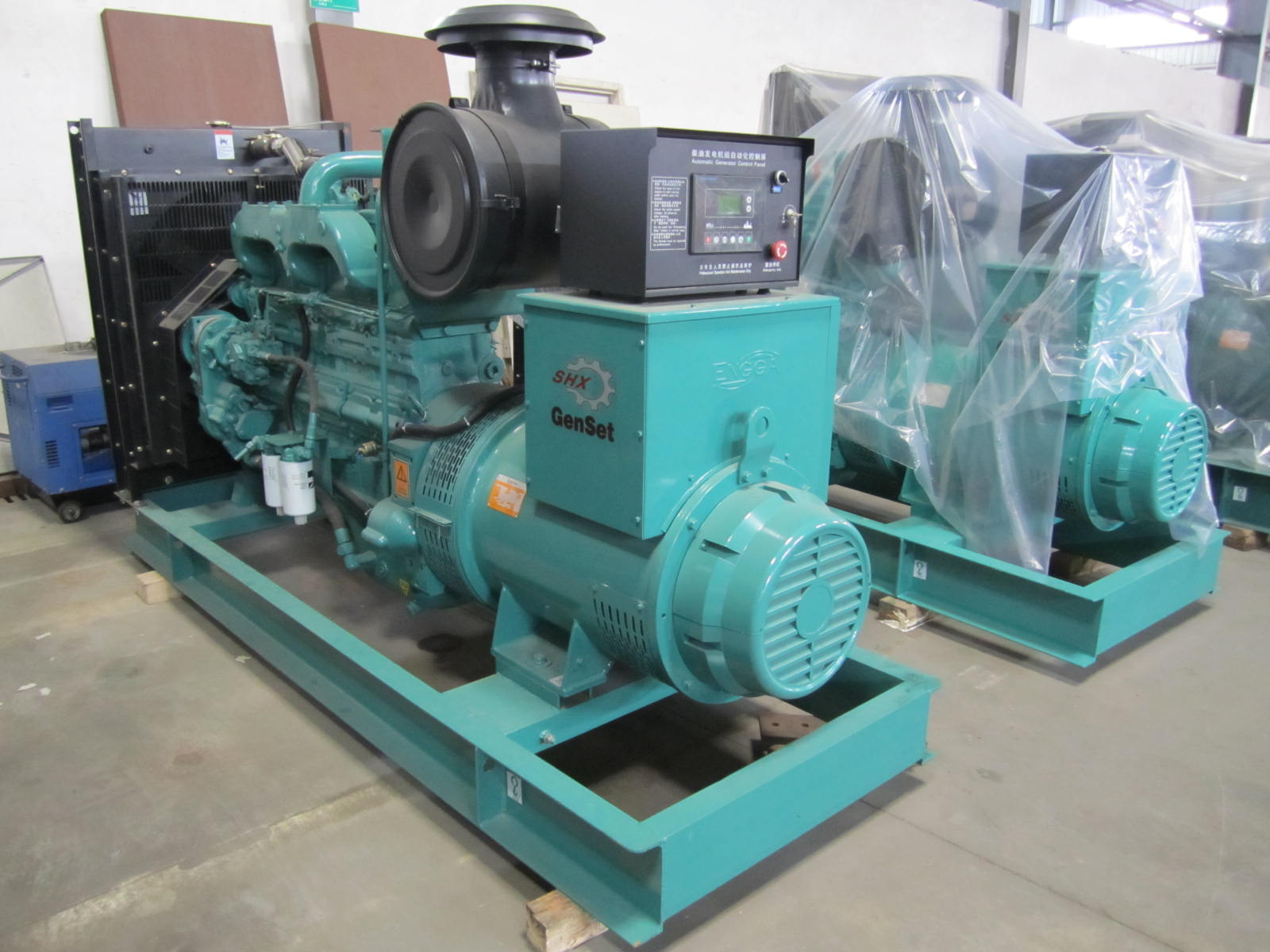

Cummins NT855-GA Open Type Diesel Generator 200KW 400/230V
Generator
Technial Specifications:
| Genset model | SCE275B |
| Genset rated power | 200KW/250KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 360 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3000×1000×1750 |
| Gross weight (kg) | 3100 |
| Diesel Engine |
| Brand | CCEC CUMMINS |
| Model | NT855-GA |
| Engine type | 6 cylinders in Line,4 stroke, direct injection |
| Aspiration | Turbocharged and water-to-air aftercooled |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 14 |
| Bore×Stroke(mm) | 140×152 |
| Compression ratio | 15:1 |
| 100% Load fuel consumption (l/h) | ≤47.3 |
| Lube capacity(L) | 36 |
| Alternator |
| Brand | ENGGA |
| Model | EG280-200N |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP21 |
Power Specifications
- 1500RPM at 50Hz/1800RPM at 60Hz
- Water Cooled
- Turbocharged
Electrical Specifications
- Power Factor: 0.8 Lagging
- 3 Phase 4 Pole
- Insulation: Class H
- Brushless
- Self-Excited
- IP22 Protection
- AVR regulation
- Starting by Battery
SCOPE OF SUPPLY
1. DIESEL ENGINE
1.1 Engine which includes wet type cylinder, direct injection
combustion chamber, exhaust turbocharger, water cooling, electronic
governor, etc.
1.2 Fuel system, which includes, fuel pump, strainers or filters,
etc.
1.3 Air intake and exhaust system, which includes air filter,
exhaust silencer, bellow, all intake and exhaust piping, cablings,
instruments, valves and settings, etc.
1.4 Cooling system, which includes radiator with water level alarm
and indicator, thermostatic switch, thermostatic heater, engine
shaft mounted fan, all interconnecting piping, cablings,
instruments, valves and settings, etc.
1.5 Lubricating system includes pumps, oil sumps, oil strainers and
filters, all interconnecting piping, instruments, valves and
settings, etc.
1.6 Starting system, which includes 2 sets of batteries, a set of
AC charger, and interconnecting piping, cablings, instrument,
valves and settings, etc.
2. AC SYNCHRONOUS GENERATOR
2.1 Generator, which includes exciter, rectifier, AVR, shaft
mounted fan if required.
2.2 All interconnecting piping, cablings, instruments, valves and
settings, etc.
3. COUPLINGS AND GUARD
3.1 Coupling
3.2 Coupling Guard
4. CONTROL PANEL
4.1 Local automatic control panel
5. BASEPLATE
5.1 Common base plate
6. DOCUMENTS
6.1 Generator Set Installation Manual
6.2 Generator Set Operation and Maintenance Manual
6.3 Generator Set Control Panel Manual
6.4 Engine Manual and Quality File
6.5 Alternator Manual and Quality File
6.6 Factory Acceptant Test Report
6.7 Relative Drawings and Diagrams
Sunkings' Guarantee for SHX Series Generators
- Guarantee Period: One year or 1000hours whichever comes first.
- During the guarantee period, the spare-parts will be sent through
your shipping agency in China.
- Spare-parts can also be sent thought FEDEX or DHL, but the shipping
cost will be charged on both sides for 50%.
- 24 hours service hotline is available for customers.
OEM Service:
Sunkings Electric Co., Ltd. Can provide professional OEM Service
for customers.
- Unique design and manufacture of generator according to customers
requirement.
- Customer logo printing or painting on the genset.
- Installation and Operation manual neutral or headings can be design
according to customer requirement.
- Full warranty cover to support the customers.
