Open Diesel Generator 110KW / 138KVA Cummins 6BTAA5.9-G2 Standby
Diesel Generator Set
Generator Set Information:
| Product Name | 138KVA Diesel Genset | Model | SCE138 |
| Rated Power | 110KW / 138KVA | Standby Power | 120KW / 150KVA |
| Engine Brand | CUMMINS | Alternator Brand | FARADAY |
| Voltage | 400/230V | Current | 198A |
| Frequency | 50Hz | Running Speed | 1500RPM |
| Phase | 3 | Power Factor | 0.8 |
Engine Specifications:
| Diesel Engine |
| Brand | DCEC CUMMINS |
| Model | 6BTAA5.9-G2 |
| Engine type | 6 cylinders in Line,4 stroke, direct injection |
| Aspiration | Turbocharged and air-to-air intercooled |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 5.9 |
| Bore×Stroke(mm) | 102×120 |
| Compression ratio | 17.5:1 |
| 100% Load fuel consumption (l/h) | ≤26.9 |
| Lube capacity(L) | 16.4 |
Alternator Specifications:
| Alternator |
| Brand | ENGGA |
| Model | EG225-120N |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP21 |
Manufacturing Standards:
ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22;
YD/T502
Electrical Parameters
Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of
VDE0875-N and ISO8528
Control Function
Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA;
Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency;
Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low
Battery Volts; Over Current; Earth Fault Shutdown.
Voltage
- Frequency at 50Hz: Available in 400/230Volts, 415/240Volts,
380/220Volts, 220/127Volts, and 200/115Volts.
- Frequency at 60Hz: Available in 480/227Volts, 440/254Volts,
220/117Volts, and 208/120Volts.
Special Type Generator Set
1. Acoustic Enclosure Generator Set.
2. Containerized Generator Set.
3. Trailer-Mounted Generator Set.
4. Mobile Generator Set (Truck Mounted).
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent
through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the
shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.

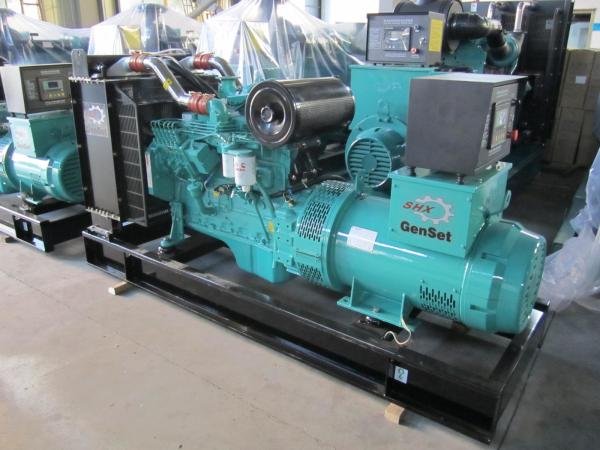

110KW / 138KVA open diesel generator, power generator
