Automatic Diesel Genset Control Panel For Synchronization Of Two 1250KVA Gensets

Descriptions Of Control Panel Smartgen HGM9510

HGM9510 controller also monitors the engine, indicating the operational status and fault conditions accurately. When abnormal condition occurs, it splits bus and shuts down the genset, simultaneously the exact failure mode information is indicated by the LCD display on the front panel. SAE J1939 interface enables the controller to communicate with various ECU (ENGINE CONTROL UNIT) which fitted with J1939 interface.

Specifications:

1. Multiple running modes in auto state: with load running, off load running, demand parallel running;

2. Ramp on and ramp off function;

3. 3 fixed sensors (temperature, oil pressure and liquid level);

4. 2 configurable sensors can be set as sensor of temperature, oil pressure or fuel level;

5. More kinds of curves of temperature, oil pressure, fuel level can be used directly and users can define the sensor curves by themselves；

6. Precision measure and display parameters about Engine,

7. Protection: automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;

8. All output ports are relay output;

9. Parameter setting: parameters can be modified and stored in internal EEPROM memory and cannot be lost even in case of power outage; most of them can be adjusted using front panel of the controller and all of them can be modified using PC via USB or RS485 ports;

10. Multiple crank disconnect conditions (speed sensor, oil pressure, generator frequency) are optional.

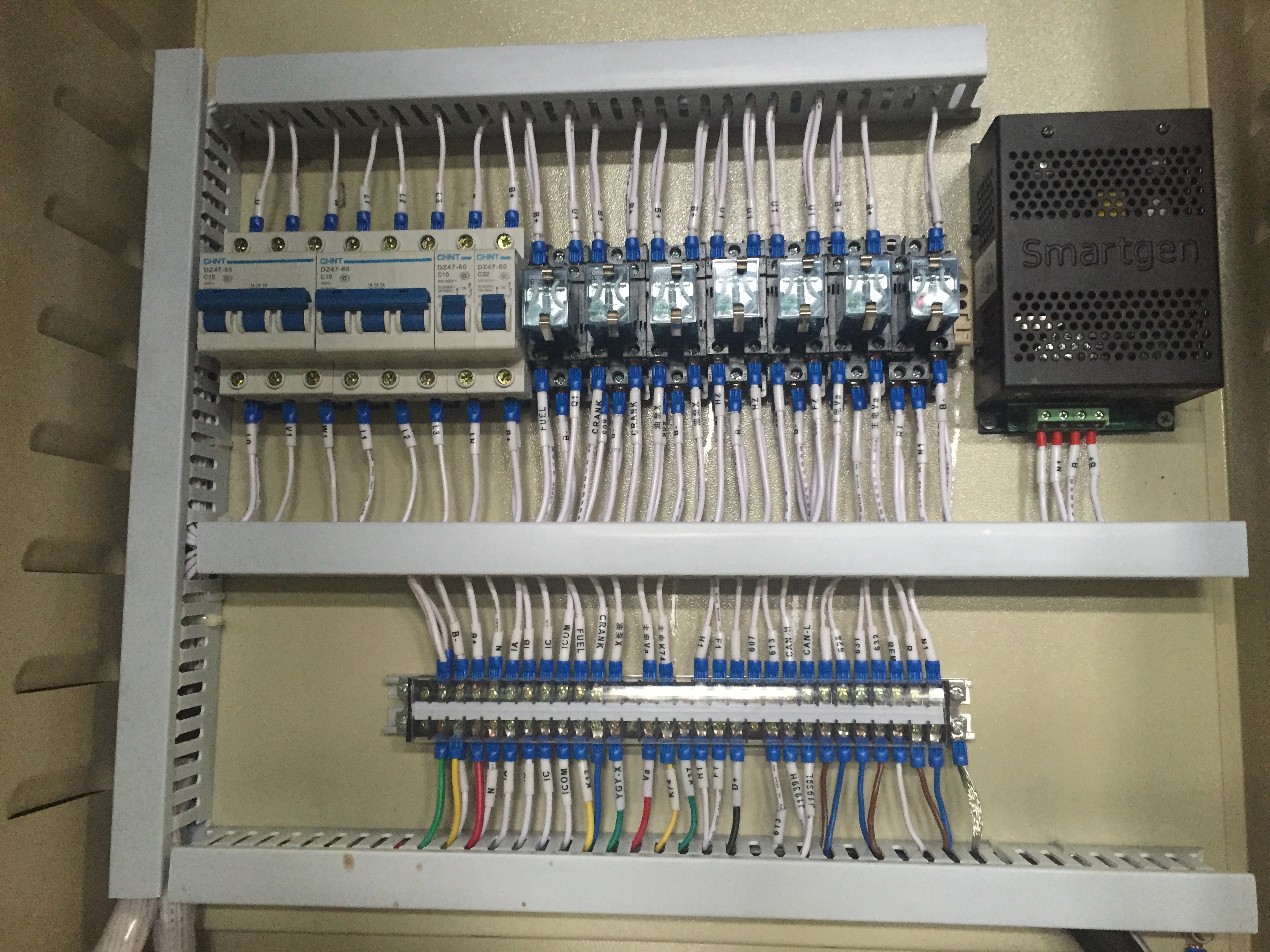

Finished synchronous control system for two units of generator sets

GUANGDONG SUNKINGS ELECTRIC CO., LTD is one of the leading generator sets manufacture and supplier in southern China since 1993.

We make Diesel Generator Sets /Biogas Generator Sets covering 20KW to 2400KW (25KVA to 3000KVA), and offer fully power solutions for agricultural and industrial purpose. We are the appointed OEM partner of Cummins, Perkins, Volvo and Daewoo.Excellent engines equipped with world-known alternators such as Stamford, Marathon, Engga and Farada. All our jobs are to make sure the excellent performance of our generator sets.

Due to our credibility and strength in the passed 20 years, we were authorized by UN(United Nations) as Official UN Supplier on Marth 15th, 2007.

Our factory and office are located in Foshan City, a beautiful city near Guangzhou, which is only 45mins to Canton Fair Exhibition Centre by car.
We sincerely welcome friends from all over the world to our city and visit our company.
We would like to listen what you need for electric power, and offer you the best solution.
