Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2

    Buy cheap Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2 from wholesalers

    Buy cheap Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2 from wholesalers
    • Buy cheap Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2 from wholesalers

    Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2

    Ask Lasest Price
    Brand Name : SHX
    Model Number : SCE125
    Certification : ISO9001:2015, CE, TUV , BV
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

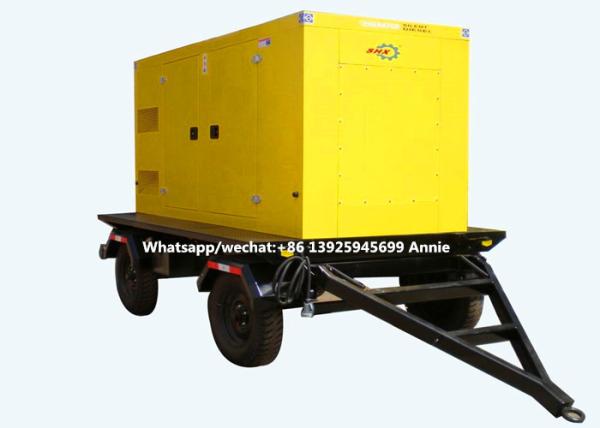

    Emergency Mobile Genset 1500Rpm 50 Hz Cummins Engine 6BTA5.9-G2

    400V 125KVA Backup Portable Emergency Generator 1500Rpm Cummins Engine 6BTA5.9-G2


    Genset Data: 400/230V, 50Hz, 3 Phase 4 Pole, 1500RPM.


    Genset modelSCE125
    Genset rated power100KW/125KVA
    Rated voltage230/400V (adjustable)
    Rated current180 Amp
    Frequency50 Hz
    Power factor0.8 Lagging
    Connecting type3 phase 4 wire
    Cooling systemClosed cycle water-cooled with fan, water tank
    Overall dimension (L×W×H) mm4150×1600×1800
    Gross weight (kg)2000

    Engine Specifications:


    Diesel Engine
    BrandDCEC CUMMINS
    Model6BTA5.9-G2
    Engine structure6 cylinders vertical in line, 4 stroke, turbocharged
    Rotating speed1500 RPM
    Engine cooling methodWater-cooled
    Speed governing systemElectronic speed governor
    Starting methodBy 24V batteries
    Engine filter systemDry type air filter ,fuel filter, oil filter, water filter
    Displacement(L)5.9
    Bore×Stroke(mm)102×120
    Compression ratio17.5: 1
    100% Load fuel consumption (litre/h)≤24.8
    Lube capacity(L)16.3

    Alternator Specifications:


    Alternator
    BrandENGGA (Adjustable)
    ModelEG225-100N
    Excite typeBrushless self-excited AVR regulation
    Connecting type3 phase 4 pole
    Steady frequency change0.50%
    No load voltage≥95%-105%
    Steady voltage≤±1%
    Insulation classClass H
    Protection gradeIP21

    Features:

    1. High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
    2. The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
    3. Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
    4. Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
    5. Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
    6. Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.
