    Backup Mobile Diesel Generators 150KVA Small Emergency Electric Generator

    Ask Lasest Price
    Brand Name : SHX
    Model Number : SCF150
    Certification : ISO9001:2015, CE, TUV, BV
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Backup Mobile Diesel Generators 150KVA Small Emergency Electric Generator

    Backup Power , Trailer-Mounted, Portable Diesel Generator Small Emergency Electric Generator


    GENERATOR SET DATA

    Prime power: 150KVA / 120KW
    Rated voltage: 400V / 230V
    Rated frequency: 50Hz / 60 Hz
    Rated speed: 1500RPM / 1800RPM


    ENGINE

    Brand: Cummins
    Model: 6BTAA5.9-G12
    Speed Governor Electronic
    Cooling System Forced Water Cooling Cycle
    Bore x Stroke : 159 x 159

    Cylinders: 12 Vee Form

    Displacement : 37.8 L


    ALTERNATOR

    Alternator Brand: Faraday
    Model: FD3D1-4
    Number of Phase: 3P
    Protection Grade: IP23

    AVR Automatic Voltage Regulation,

    100% Copper Winding Wire
    Instruction: Class H
    Brushless Self Excited, Single Bearing, 4 Poles
    Self-Exciting and Self-Regulating

    Power Factor: 0.8 Lagging


    CONTROL PANEL

    The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset has low oil pressure, high temperature, over speed, fail to start, charge fail, emergency stop, and over load protection function.



    Features:

    1. High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
    2. The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
    3. Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
    4. Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
    5. Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
    6. Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.

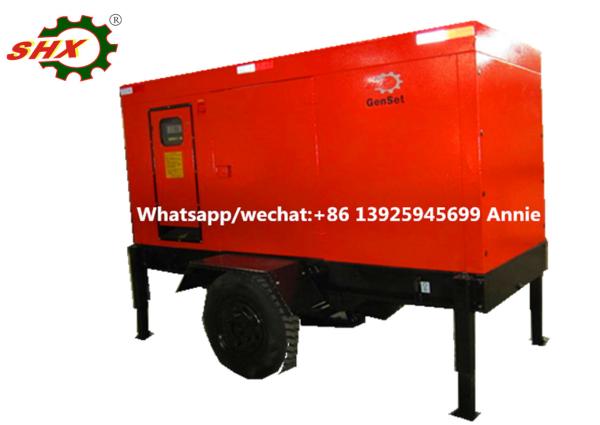

    Photo Show:


    Backup Mobile Diesel Generators 150KVA Small Emergency Electric Generator
