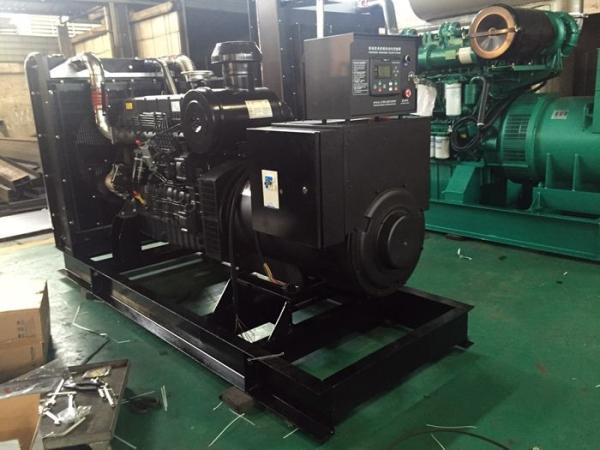

300KW / 375KVA Commercial Diesel Generators 3 Phase Emergency
Generator Set
Genset Data: 400/230V, 50Hz, 3 Phase 4 Pole, 1500RPM, Power Factor 0.8.
Genset Specifications:
| Genset model | SSF413 |
| Genset rated power | 300KW/375KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 540 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3500×1200×1800 |
| Gross weight (kg) | 3000 |
Engine Specifications:
| Diesel Engine |
| Brand | SHANGCHAI |
| Model | SC12E460D2 |
| Engine type | 6 cylinders in Line,4 stroke, direct injection |
| Aspiration | Turbocharged and air-to-air intercooled |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 11.8 |
| Bore×Stroke(mm) | 128×153 |
| Noise level (dB) | 105 |
| 100% Load fuel consumption (l/h) | ≤67.8 |
| Lube capacity(L) | 37 |
Alternator Specifications:
| Alternator |
| Brand | FARADAY |
| Model | FD4L1-4 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Introduction of Diesel Generator:
A Diesel Generator (DG) is a combination of diesel engine with
electrical generator (often called an alternator) to generate
electricity. DG sets are used in places that have no connection to
power grid, and as emergency power-supply if the grid fails. In
other words, DG sets remain the number one choice for standby and
emergency power systems. DG sets are selected based on the
electrical load they are intended to supply.
SCOPE OF SUPPLY
1. DIESEL ENGINE
1.1 Engine which includes wet type cylinder, direct injection
combustion chamber, exhaust turbocharger, water cooling, electronic
governor, etc.
1.2 Fuel system, which includes, fuel pump, strainers or filters,
etc.
1.3 Air intake and exhaust system, which includes air filter,
exhaust silencer, bellow, all intake and exhaust piping, cablings,
instruments, valves and settings, etc.
1.4 Cooling system, which includes radiator with water level alarm
and indicator, thermostatic switch, thermostatic heater, engine
shaft mounted fan, all interconnecting piping, cablings,
instruments, valves and settings, etc.
1.5 Lubricating system includes pumps, oil sumps, oil strainers and
filters, all interconnecting piping, instruments, valves and
settings, etc.
1.6 Starting system, which includes 2 sets of batteries, a set of
AC charger, and interconnecting piping, cablings, instrument,
valves and settings, etc.
2. AC SYNCHRONOUS GENERATOR
2.1 Generator, which includes exciter, rectifier, AVR, shaft
mounted fan if required.
2.2 All interconnecting piping, cablings, instruments, valves and
settings, etc.
3. COUPLINGS AND GUARD
3.1 Coupling
3.2 Coupling Guard
4. CONTROL PANEL
4.1 Local automatic control panel
5. BASEPLATE
5.1 Common base plate
6. DOCUMENTS
6.1 Generator Set Installation Manual
6.2 Generator Set Operation and Maintenance Manual
6.3 Generator Set Control Panel Manual
6.4 Engine Manual and Quality File
6.5 Alternator Manual and Quality File
6.6 Factory Acceptant Test Report
